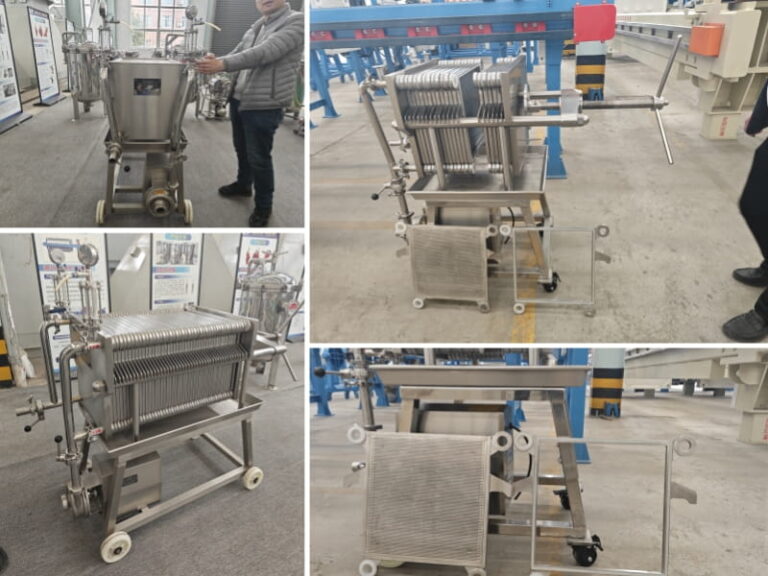

Sanitary Stainless Steel Filter Press
When product purity is non-negotiable, standard carbon steel equipment simply isn’t enough. Our Stainless Steel Filter Press is manufactured entirely from high-grade SUS304 or SUS316L.
Whether you are filtering edible oils, pharmaceutical intermediates, or corrosive acids, this machine ensures zero contamination, easy sterilization, and absolute compliance with GMP and FDA standards.
Why Choose Full Stainless Steel?
While carbon steel presses are cheaper, they corrode and can contaminate sensitive products. Our Stainless Steel series offers:
1. Superior Corrosion Resistance:
- Resists attack from acids, alkalis, solvents, and chlorides.
- Ideal for pH 1-14 environments where painted steel would fail.
2. Sanitary Design (GMP Compliant):
- All contact surfaces are polished (Ra < 0.8µm optional).
- No dead angles or crevices for bacteria to hide.
- Easy to clean (CIP – Clean In Place compatible) and sterilize.
3. High Temperature Tolerance:
- Maintains structural integrity at temperatures up to 150°C – 300°C (depending on filter plate material).
4. Aesthetic Appeal:
- A clean, modern look that fits perfectly in laboratory or cleanroom environments.
Material Options: Customized to Your Needs
We offer two grades of stainless steel to match your specific application:
- SUS304 (Standard): Excellent for most food and beverage applications, weak acids, and general chemical processing.
- SUS316L (Premium): Added Molybdenum for superior resistance to chlorides (salt), strong acids, and high temperatures. Essential for pharmaceutical and marine applications.
Note: You can choose Full Stainless Steel (Frame + Plates) or Stainless Steel Clad (Carbon steel core with SS cover) for cost savings.
Ideal Applications: Industries We Serve
Food & Beverage
1. Beer clarification (yeast removal).
2. Syrup and Honey filtration.
3. Edible Oil fractionation (Palm oil, Sunflower oil).
4. Fruit Juice and Wine polishing.
Pharmaceuticals
1. Antibiotic fermentation broth.
2. Blood plasma fractionation.
3. Traditional Chinese Medicine (TCM) extraction.
Fine Chemicals
1. High-purity pigments and dyes.
2. Electronic grade chemicals.
3. Cosmetic ingredients.
Model Specifications
| Model | Filter Area(㎡) | No. of Plate | Flow(T/h) | Plate Size (mm) | Dimension(mm) |
|---|---|---|---|---|---|
| BASJL600-14 | 14 | 41 | 10-13 | 600×600 | 1750×870×1350 |
| BASJL600-21 | 21 | 61 | 15-20 | 600×600 | 2100×870×1350 |
| BASJL600-24 | 24 | 71 | 20-25 | 600×600 | 2250×870×1350 |
| BASJL600-35 | 35 | 101 | 25-30 | 600×600 | 2800×870×1350 |
| BASJL400-2 | 2 | 15 | 1-2 | 400×400 | 1250×660× 1300 |
| BASJL400-3 | 3 | 21 | 1-3 | 400×400 | 1350×660×1300 |
| BASJL400-4 | 4 | 31 | 3-4 | 400×400 | 1550×660×1300 |
| BASJL400-6 | 6 | 45 | 4-6 | 400×400 | 1750×660×1300 |
| BASJL400-8.5 | 85 | 61 | 6-8 | 400×400 | 2100×660×1300 |
| BASJL400-9.5 | 9.5 | 71 | 8-10 | 400×400 | 2300×660×1300 |
Frequently Asked Questions
Q: Can I use filter paper with this machine?
A: Yes. We offer a Plate and Frame version of the stainless steel press specifically designed for holding filter paper or cardboard pads for ultra-fine filtration (0.2 – 1 micron).
Is the hydraulic system also stainless steel?
A: The hydraulic cylinder body can be clad in stainless steel, and the oil tank can be made of SS304. The internal piston rod is typically hard chrome plated for durability.
Q: How do you ensure the surface finish?
A: We sandblast and polish all stainless steel surfaces. For pharma applications, we can provide Mirror Polishing (Ra < 0.4µm) upon request.
Ensure Purity in Every Drop
Don’t compromise on hygiene. Invest in a machine built for the highest standards.
Specify: Liquid type, pH, Temperature, and Capacity.
