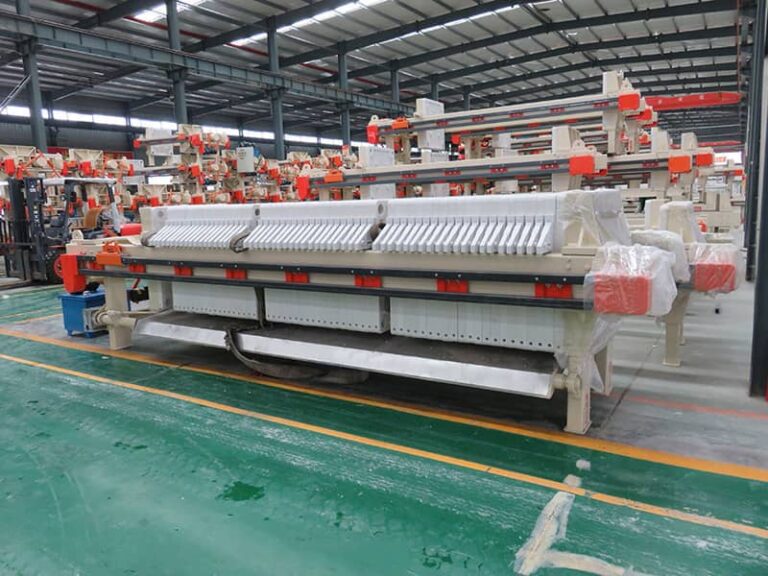

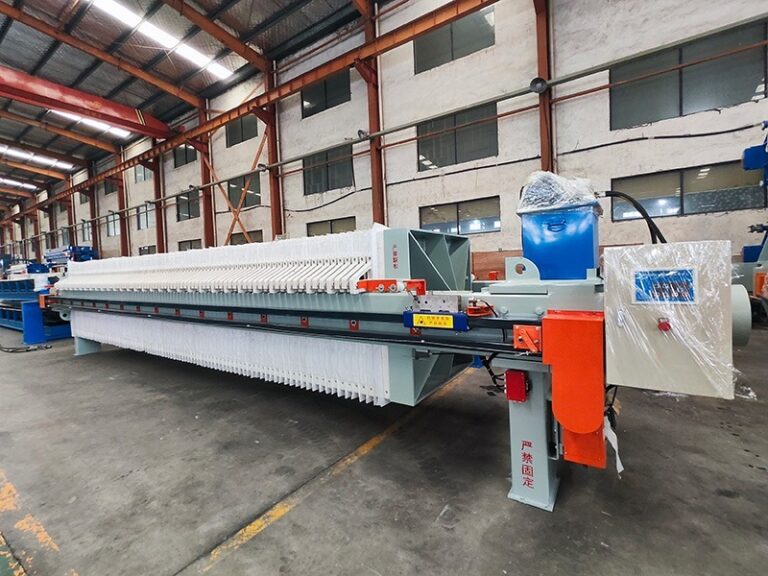

High-Performance Recessed Chamber Filter Press
Recessed Chamber Filter Press is the workhorse of the dewatering industry. Engineered for durability and simplicity, it handles the toughest slurries with ease. By utilizing a fixed-volume chamber design and high-pressure feed pumps, it captures solids efficiently while discharging clear filtrate.
If you are looking for a low-maintenance, budget-friendly solution that gets the job done day in and day out, this is your best choice.
Why Choose a Recessed Chamber Press?
1. Unmatched Durability: With fewer moving parts than complex membrane systems, the recessed chamber design is incredibly robust. The heavy-duty steel frame (Q345B) withstands high internal pressures without deformation.
2. Cost-Effective Operation:
- Lower CAPEX: Significantly lower initial purchase price compared to membrane presses.
- Lower OPEX: Minimal maintenance required. No need for air compressors or water squeezing pumps.
3. High Efficiency: Our optimized chamber design ensures rapid cake formation and easy discharge.
4. Versatility: Suitable for everything from simple mud dewatering to complex chemical filtration.
Choose Your Level of Automation
We offer three configurations to match your operational scale and budget:
1. Manual / Semi-Auto (Economic)
- Operation: Manual plate shifting; hydraulic closing (electric or manual).
- Best For: Small batch production, low frequency use, or budget-conscious workshops.
- Typical Users: Small stone cutting shops, small electroplating plants.
2. Automatic Hydraulic (Standard)
- Operation: Electric hydraulic station automatically maintains pressure. Plates are shifted manually or by a semi-auto shifter.
- Best For: Medium-sized plants requiring consistent pressure holding.
- Typical Users: Ceramic factories, chemical plants.
3. Fully Automatic (High-End)
- Operation: One-touch PLC control. Includes Automatic Plate Shifter, Automatic Cloth Washing System, and Bomb Doors (Drip Trays).
- Best For: 24/7 continuous operation, large-scale projects, and high labor cost regions.
- Typical Users: Large mining tailings, municipal sewage treatment plants.
Proven Results Across Industries
Stone & Aggregates
Granite/Marble cutting wastewater, sand washing mud.
Mining Tailings
Gold, Copper, Iron, Lead-Zinc tailings dewatering.
Electroplating & Metal Finishing
Removal of heavy metals from wastewater.
Ceramics
Kaolin clay and ceramic slip filtration.
Chemical Processing
Pigment production, silica, calcium carbonate.
Series Specifications
| Model | Filter area(m2) | Plate size (mm) | Cake thickness (mm) | Filter chamber volume(L) | Plate Number (pcs) | Filtration pressure (Mpa) | Motor power (KW) | Weight (KG) | Dimensions (L*W*H) (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XMY4/450-30U | 4 | 500*500 | 30 | 60 | 9 | ≤0.6 | 2.2 | 860 | 1950*700*900 |
| XMY6/450-30U | 6 | 91 | 14 | 910 | 2200*700*900 | ||||
| XMY8/450-30U | 8 | 121 | 19 | 960 | 2450*700*900 | ||||
| XMY15/630-30U | 15 | 700*700 | 226 | 18 | 1725 | 2640*900*1100 | |||
| XMY20/630-30U | 20 | 297 | 24 | 1993 | 2940*900*1100 | ||||
| XMY30/630-30U | 30 | 452 | 37 | 2360 | 3590*900*1100 | ||||
| XMY40/630-30U | 40 | 595 | 49 | 2788 | 4300*900*1100 | ||||
| XMY30/870-30U | 30 | 870*870 | 460 | 23 | 2580 | 3330*1400*1300 | |||
| XMY50/870-30U | 50 | 748 | 38 | 3318 | 4260*1400*1300 | ||||
| XMY60/870-30U | 60 | 902 | 46 | 3712 | 4700*1400*1300 | ||||
| XMY80/870-30U | 80 | 1210 | 62 | 4561 | 5580*1400*1300 | ||||
| XMY80/1000-30U | 80 | 1193 | 46 | 5259 | 5120*1500*1400 | ||||
| XMY100/1000-30U | 100 | 1473 | 57 | 5985 | 5800*1500*1400 | ||||
| XMY120/1000-30U | 120 | 1777 | 69 | 6776 | 6500*1500*1400 | ||||
| XMY100/1250-30U | 100 | 1250*1250 | 1468 | 36 | 6728 | 5020*1770*1600 | |||
| XMY160/1250-30U | 160 | 2341 | 58 | 8205 | 6450*1770*1600 | ||||
| XMY200/1250-30U | 200 | 2896 | 72 | 10851 | 7360*1770*1600 | ||||
| XMY250/1250-30U | 250 | 3650 | 91 | 12834 | 8600*1770*1600 | ||||
| XMY300/1500-30U | 300 | 1500*1500 | 5235 | 74 | 25526 | 8130*2200*1900 | |||
| XMY400/1500-30U | 400 | 6985 | 99 | 32074 | 9880*2200*1900 | ||||
| XMY500/1500-30U | 500 | 8735 | 123 | 38106 | 11560*2200*1900 |
Premium Polypropylene (PP) Plates
The heart of the machine is the filter plate. We use only 100% Virgin Polypropylene combined with a special formula of elastomers and fiberglass.
- Acid/Alkali Resistance: Withstands pH 1-14.
- High Temp Resistance: Standard up to 80°C (High-temp formula available up to 100°C).
- CNC Machined: Perfectly flat sealing surfaces to prevent leakage.
Frequently Asked Questions
Q: What is the difference between "Recessed Chamber" and "Plate and Frame"?
A: This is a common confusion. Recessed Chamber plates have a depression in the middle to hold the cake; they are stronger and easier to automate. Plate and Frame uses a flat plate plus a hollow frame; it’s mainly used for fine filtration with filter paper. For 90% of sludge dewatering, Recessed Chamber is the correct choice.
Q: How do I choose the right size?
A: Capacity depends on your slurry’s solid content and volume. Send us your daily processing volume (e.g., 500 m³/day) and solid percentage (e.g., 5%), and our engineers will calculate the exact filter area needed.
Q: Can this machine run 24 hours a day?
A: Yes. Our heavy-duty hydraulic stations and frames are designed for continuous industrial operation.
Get a Robust Filtration Solution Today
Stop overpaying for complicated systems you don’t need. Choose the industry standard for reliability.
Direct Manufacturer Price | Global Shipping | 1-Year Warranty
